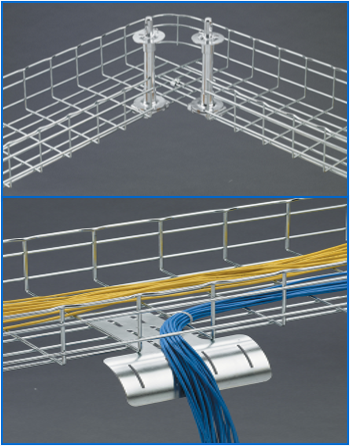

FlexTray Wire Basket

Cable Ladder Tray & Support Systems

Strut Systems & Accessories

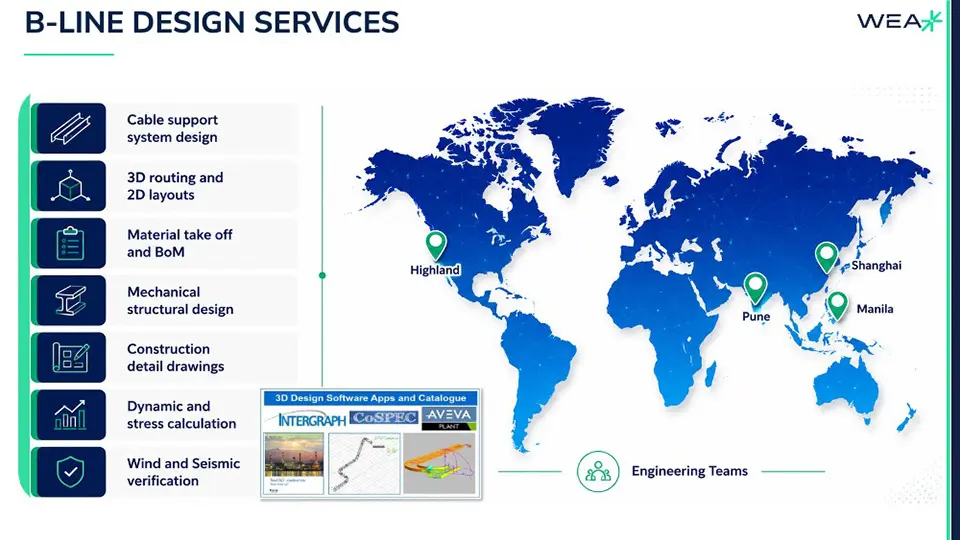

Our Cable Ladder/Tray Global Engineering & Design Services

  • Cable Support System Design

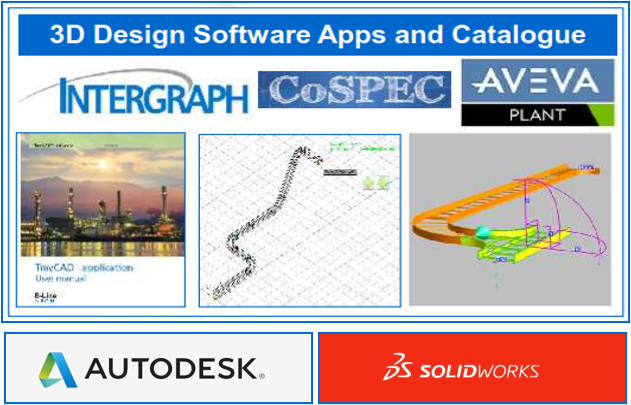

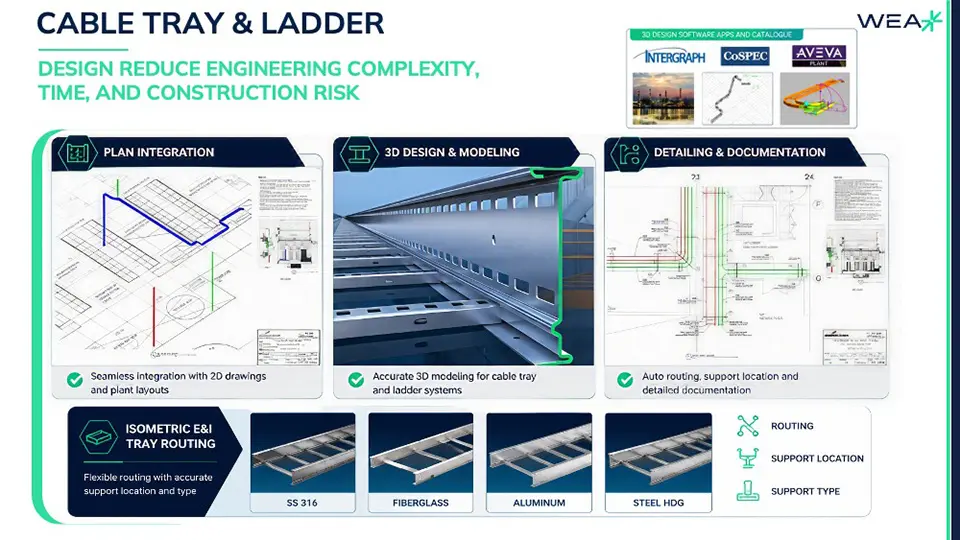

  • 3D Routing & 2D Layouts
  • Material Take-Off (MTO)
  • Bill of Material (BOM)
  • Mechanical & Structural Design
  • Support Location & Design
  • Construction Detailed Drawings
  • Detailed Product Drawings
  • Wind load calculation and verification
  • Dynamic load calculations

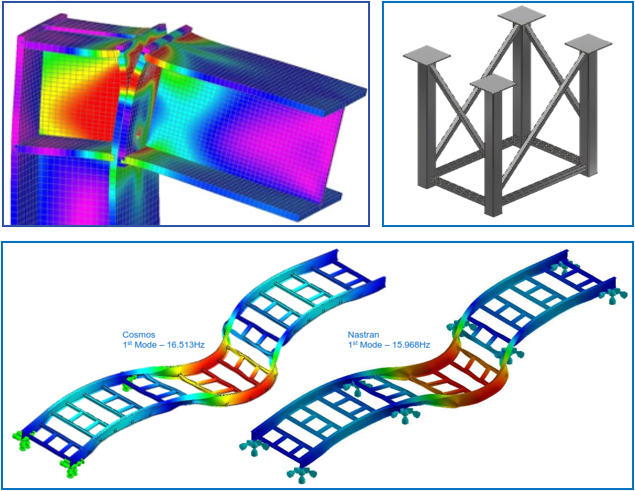

  • Finite element analysis
  • Natural frequency analysis
  • Seismic calculations and analysis
  • Testing and certification service
Cable Ladder Tray & Support Systems bline design
Cable Ladder Tray & Support Systems

Case study for E&I Tray System 3D Layouts

Cable Ladder Tray & Support Systems 3D

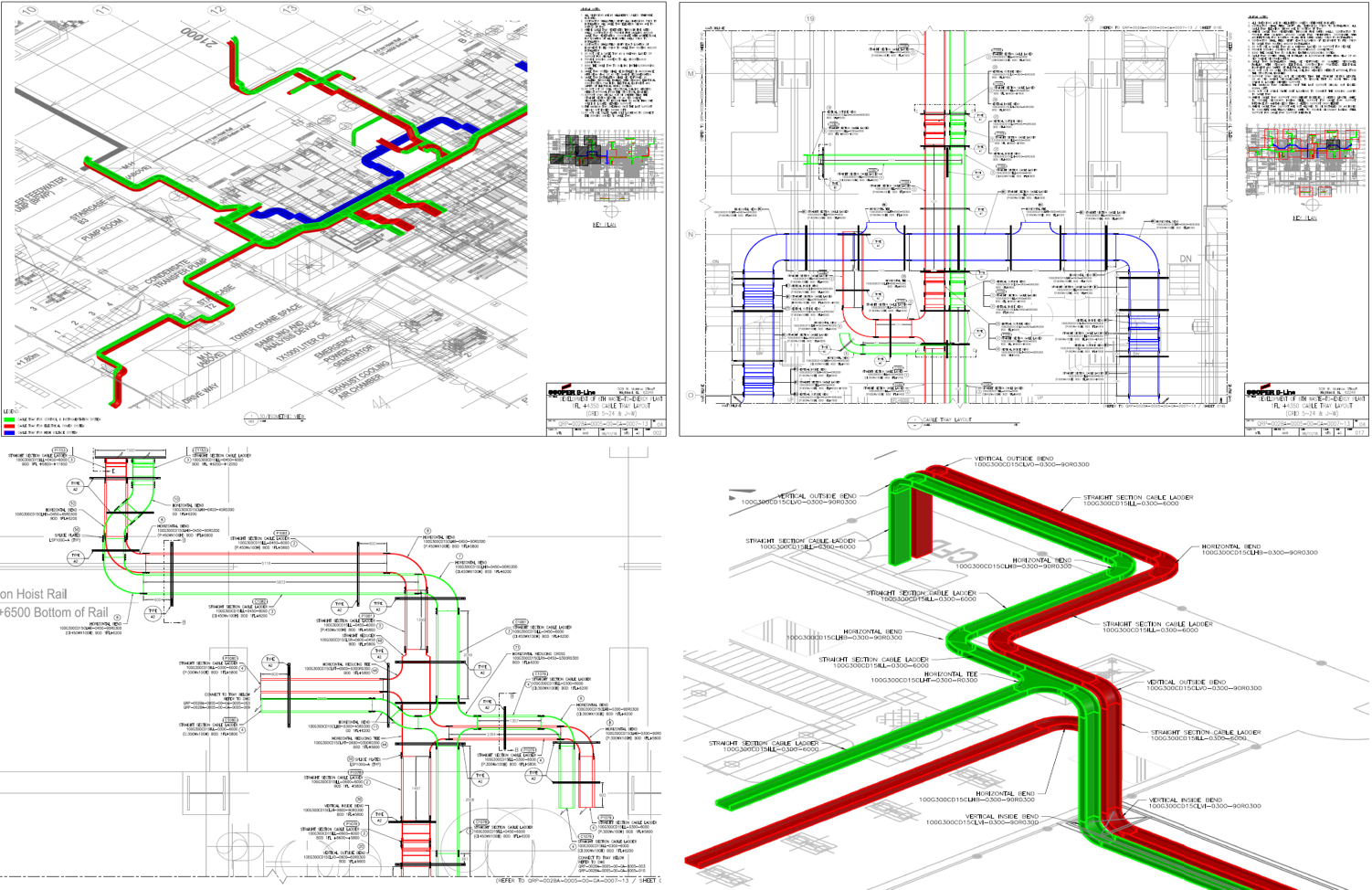

2D Drawing Design Capability

Cable Ladder Tray & Support Systems 2D

E&I Ladder/Tray Optimization

cable ladder support system

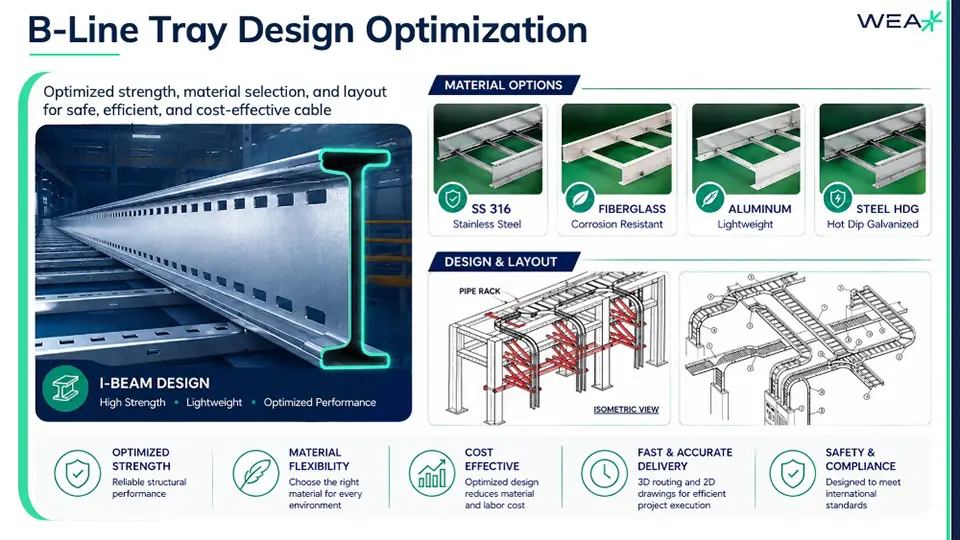

I-beam Tray Performance Optimization

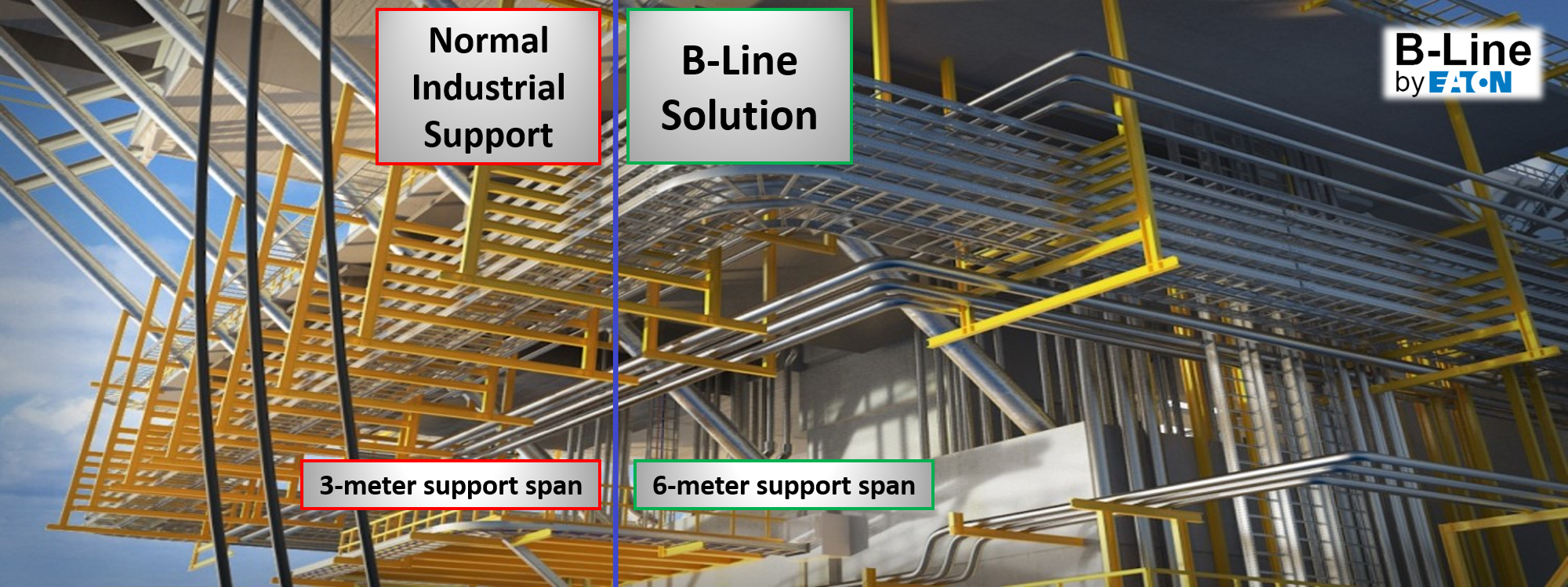

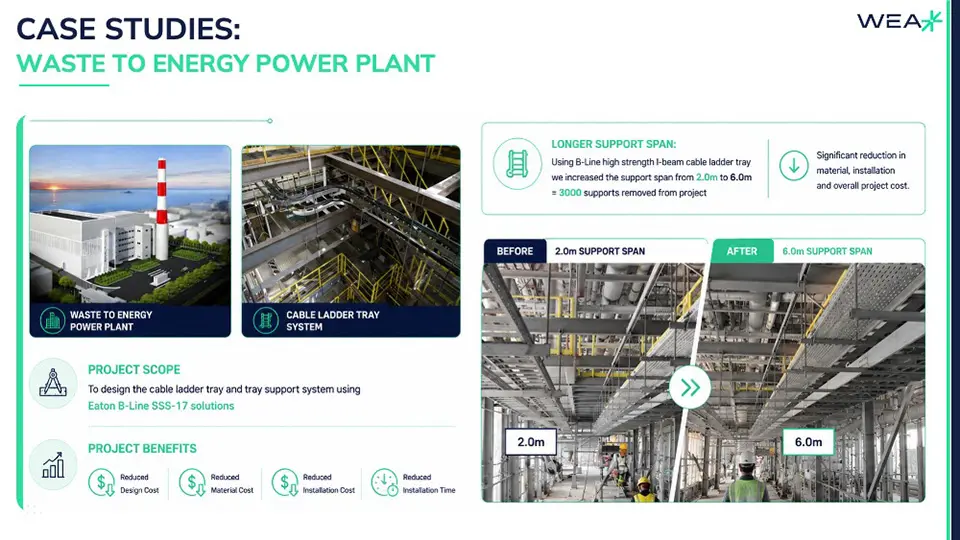

  • High strength ladder tray = 6mtr support spans = up to 50% supports removed

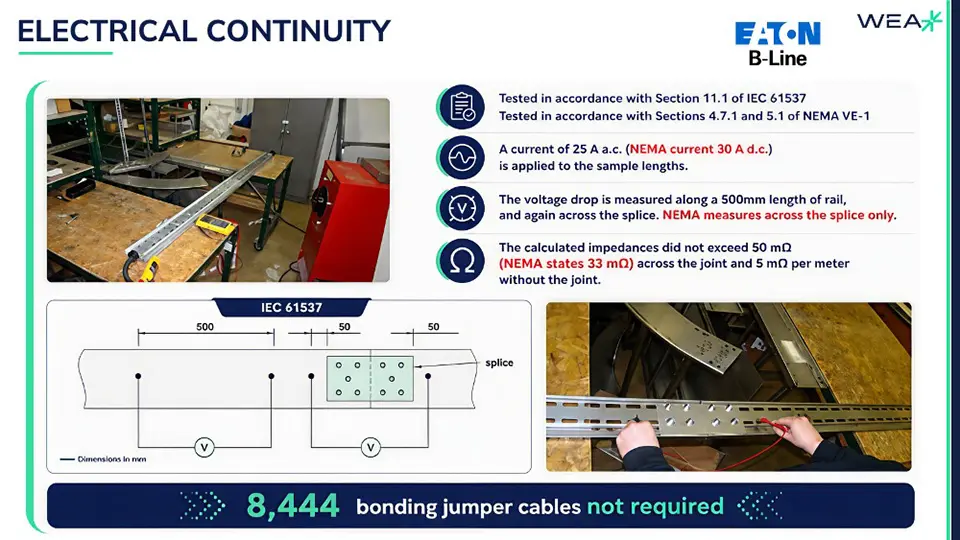

  • IEC 61537 certified = electrical continuity = up to 50% bonding cables removed
  • Wedge-lock splice = mid-span = up to 50% splice plates + 50% bolts removed
  • High strength to weight ratio = less material higher strength = NEMA 20C+
Cable Ladder Tray & Support Systems bline design

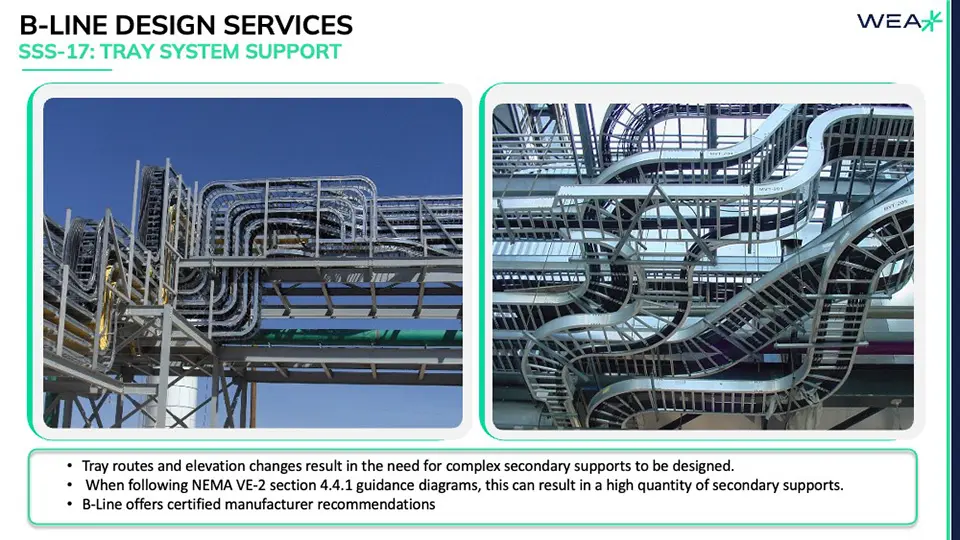

SSS-17 Tray Support Optimization

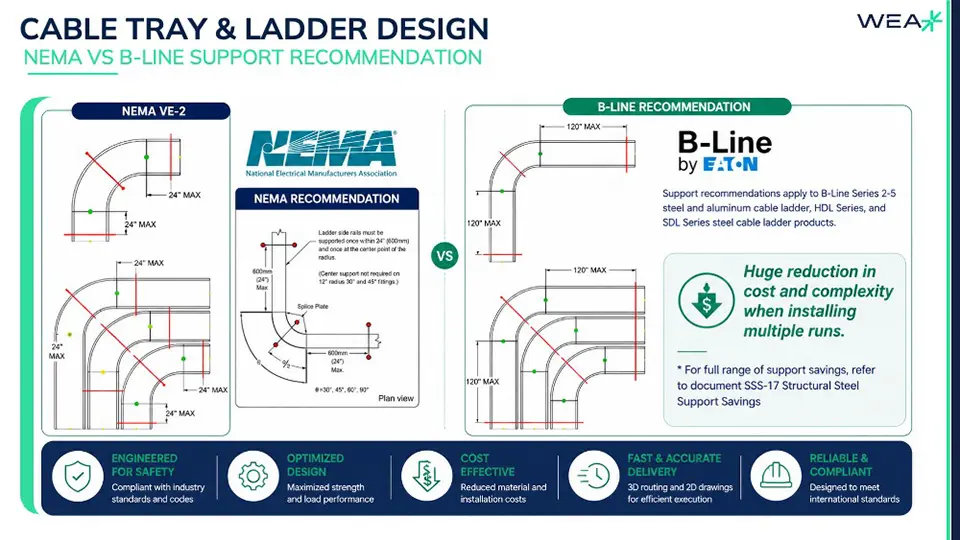

  • Tray support recommendations = system optimization = up to 50% supports removed
  • HD expansion splice = no support expansion joint = up to 50% supports removed
  • DNV certifications = 3rd party verification = proven and guaranteed performance
  • Less supports = less design hours, less material, less installation = up to 65% hours saved
Cable Ladder/Tray & Support Systems

Cover Installation Optimization

  • LCCSD cover clamps = one clamp fits all cover sizes = one part standardization
  • High performance = secure fixing, simple quick installation = reduce cover install cost

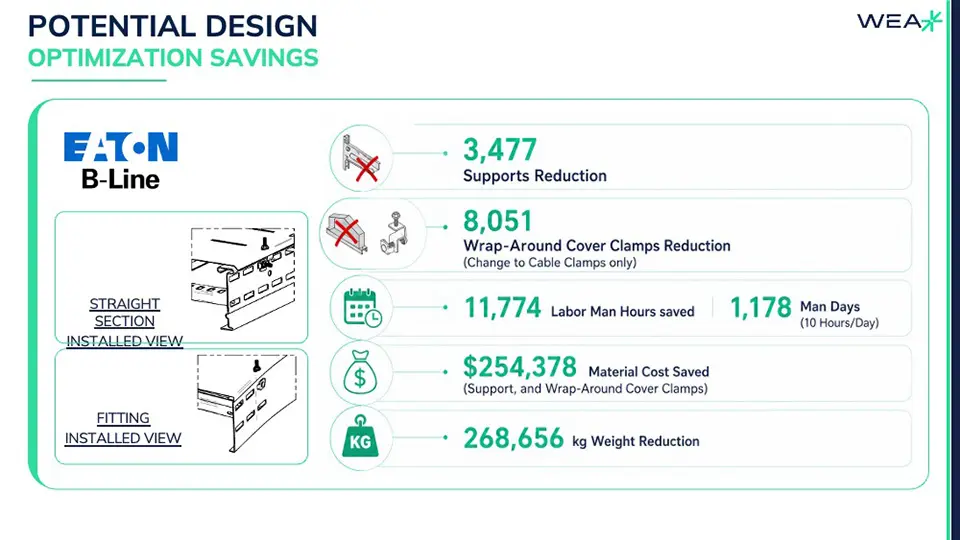

Up to 65% time saved + 50% material cost saved

Click here to watch how to reduce total installed cost with B-Line series cable ladder!

Our Strategic Engineering Support

WEA Office & Engineering Locations

Contact us for
more information



    Wholesale Electric Asia Pte Ltd (HQ)

    211 Henderson Road, #14-03
    Singapore 159552

    Drop us an email here

    Phone Number: +65 6460 4399
